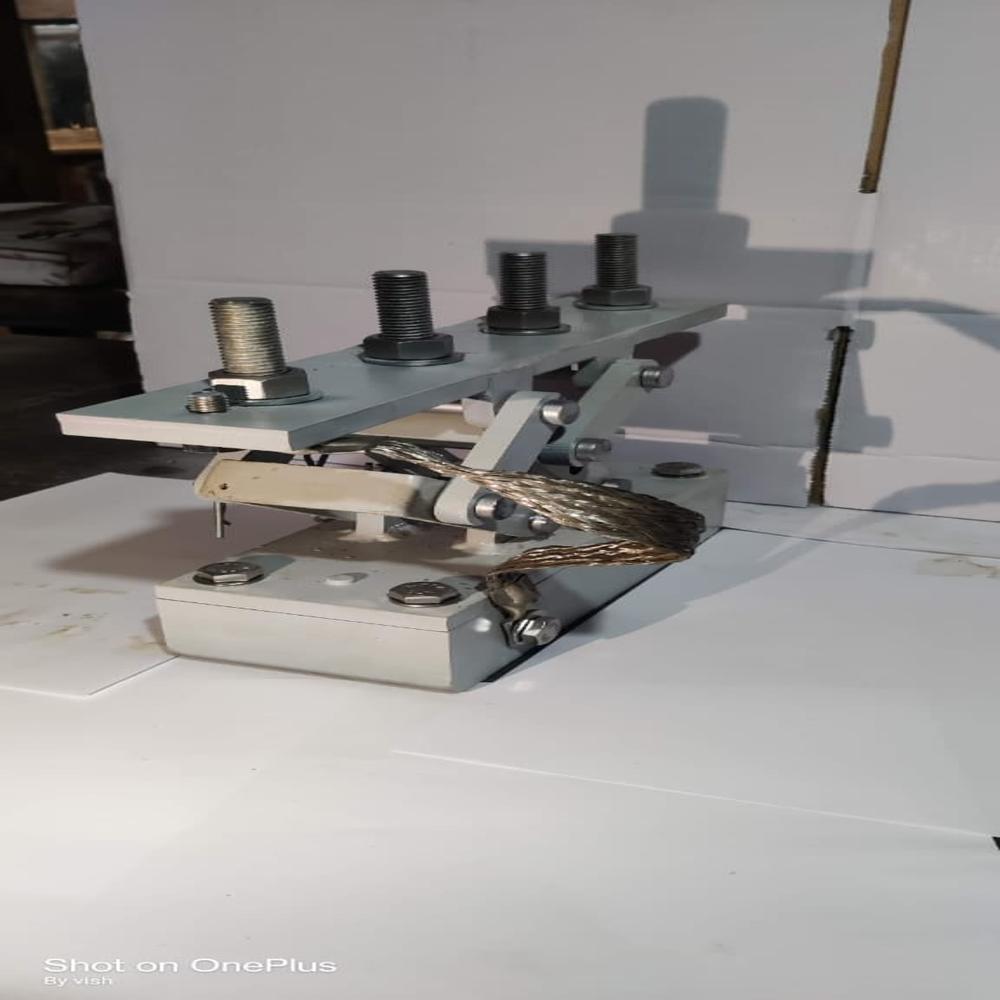

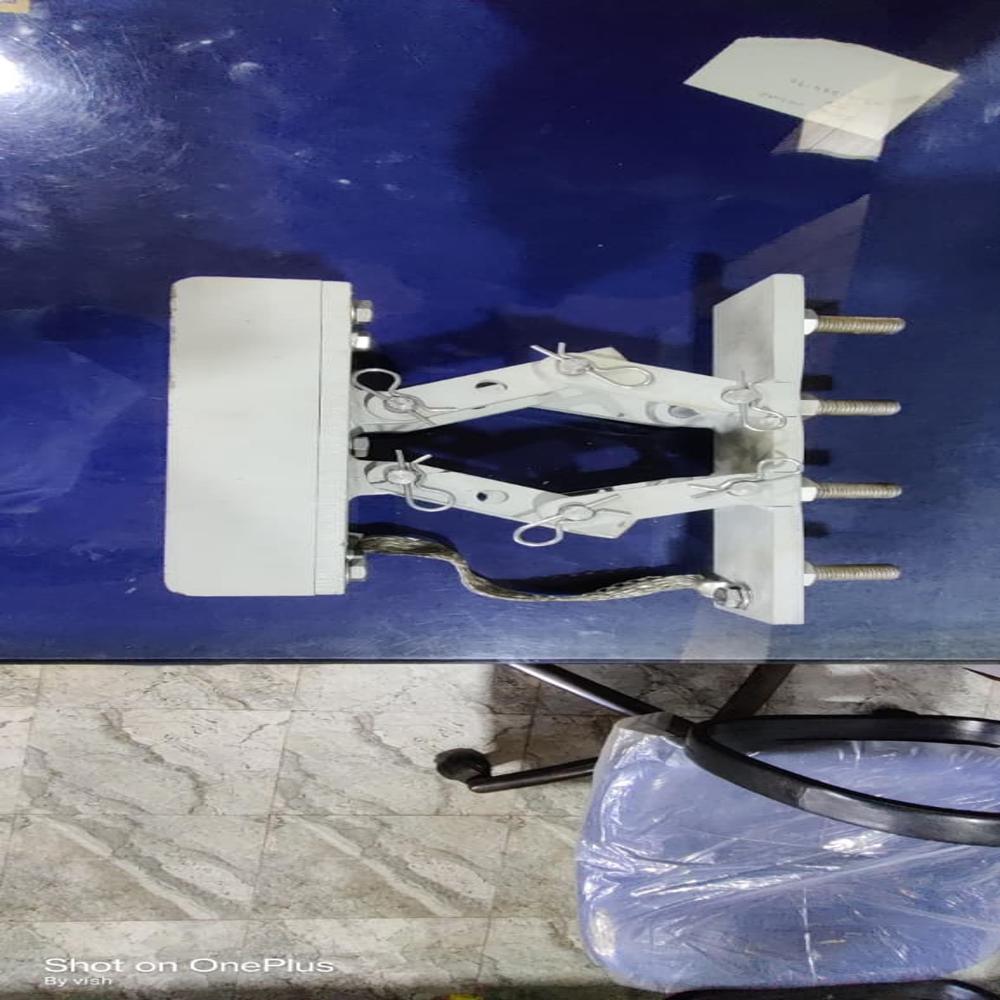

PANTOGRAPH CURRENT COLLECTOR

Name: PANTOGRAPH CURRENT COLLECTOR
Brand: SILVERLINE METAL ENGINEERING PVT. LTD.
Price: 18000.0 INR
Availability: InStock

Price 18000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PANTOGRAPH CURRENT COLLECTOR Specification

Surface Finish
Galvanized/Painted

Operating Temperature
-10C to +55C

Power Factor
N/A (Passive Device)

Shape
Rectangular with Scissor Mechanism

Overheating Protection
NO

Insulation Material
Plastic/Composite Insulators

IP Rating
IP54

Humidity %
Up to 95% RH non-condensing

Feature
Spring Loaded, Durable, Low Maintenance

Connector Type
Copper Braided Flexible Connector

Efficiency
100% Mechanical Transfer

Mounting Type
Horizontal/Side Mount

Product Type
Pantograph Current Collector

Application
Power Transmission for Overhead Cranes, Industrial Electrification Systems

Protection Level
IP54

Frequency (MHz)
50/60 Hz

Rated Voltage
Up to 690 V AC

Energy Consumption
Passive Device (Nil Energy Consumption)

Output Type
Current Collection

Color
Gray/Silver

Dimension (L*W*H)
Approx. 250 mm x 150 mm x 100 mm

Weight
Approx. 5-7 kg

Input Voltage
690V Maximum

Phase
Single Phase

Size
Standard/Custom as per Rail

Connection Type
Bolt/Stud Connection

No Of Poles
Single Pole

Material
Mild Steel, Copper Braided

Shock Resistant
Yes

Spring Mechanism
Stainless Steel Spring

Contact Strip Material
Carbon-Graphite/Copper Alloy

Max. Current Capacity
125A - 250A

Service Life
Up to 5 years under normal operation

Operating Speed
Up to 200 m/min

Corrosion Resistance
High

Mechanical Travel
Up to 50mm

Replacement Parts
Available

Contact Pressure
6-12 N

Wear Plate
Replaceable Type

Vibration Resistance
Yes

About PANTOGRAPH CURRENT COLLECTOR

Introducing the new release of our Peerless Pantograph Current Collector, designed for transcendent efficiency in industrial electrification. Featuring a matchless contact strip material of carbon-graphite or copper alloy, it supports a maximum current capacity of 125A-250A. With a durable stainless steel spring mechanism and shock/vibration resistance, this collector guarantees high corrosion resistance and a service life of up to five years. Now available at a special offer and discount for exporters, manufacturers, and suppliers. Replacement parts ensure low maintenance and continued reliability for overhead cranes and power transmission systems.

Ideal Surface Of Application & Powerful Features

Engineered for mounting on overhead crane rails and industrial electrification systems, this pantograph current collector adapts to both horizontal and side installations. Its corrosion-resistant, galvanized or painted finish, and replaceable wear plate make it highly durable. The robust design easily withstands high vibration and shock, while the IP54 rating ensures protection against dust and splashes. Fit for single-phase operation, it ensures flawless current collection even at speeds up to 200 m/min and tough industrial environments.

Sample Policy, Shipped Goods, and FOB Port Details

We offer a generous sample policy, providing potential clients with samples to ensure complete satisfaction prior to large orders. All sample goods are securely packaged and handed over at the lowest price possible. Shipments are efficiently processed through major FOB ports, ensuring timely and safe delivery of ordered collectors. Clients can rest easy knowing that their shipped goods will arrive promptly, demonstrating our commitment as a reliable exporter, manufacturer, and supplier.

FAQ's of PANTOGRAPH CURRENT COLLECTOR:

Q: How is the pantograph current collector mounted for best performance?

A: The collector is designed for horizontal or side mounting directly onto standard or custom rail systems. This ensures optimal current collection for overhead cranes and industrial electrification.

Q: What are the main benefits of the stainless steel spring mechanism?

A: The stainless steel spring mechanism maintains consistent contact pressure (6-12 N), leading to stable electrical performance and prolonging the service life of the collector.

Q: Where can this pantograph current collector be used?

A: It is primarily used in power transmission setups for overhead cranes and industrial electrification systems, excelling in environments with high vibration, shock, and demanding operational speeds.

Q: What replacement parts are available for continued operation?

A: Replacement wear plates and contact strips are readily available, supporting easy, low-cost maintenance and extended equipment longevity.

Q: How does the corrosion resistance feature benefit users?

A: High corrosion resistance ensures reliable performance in humid and harsh environments, minimizing downtime and maintenance over the collector's operational lifetime.
