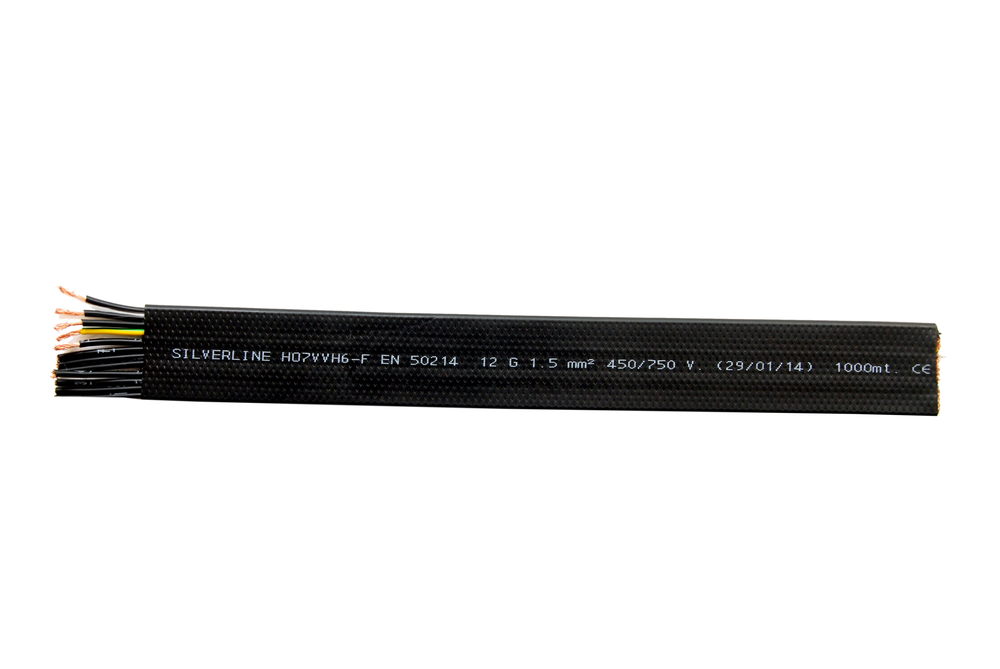

PENDENT CABLE

Name: PENDENT CABLE
Brand: SILVERLINE METAL ENGINEERING PVT. LTD.
Price: 1000 INR
Availability: InStock

Price 1000 INR/ Meter

Get a Price/Quote

PENDENT CABLE Specification

Core Material
Copper

Dielectiric Strength
2.5kV for 5 minutes

Rated Temperature
-15C to +70C

Conductor Type
Stranded flexible

Usage & Applications
Suitable for cable trolley systems, pendant stations, mobile control, power supply to moving machinery

Impedance
Standard refer to specification sheet

Conductor Shape
Round

Install Type
Flexible installation

Armored Material
Unarmored (armored available on request)

Insulation
PVC

Features
Durable, flexible, corrosion-resistant, flame-retardant, high mechanical strength, superior electrical conductivity

Operating Temperature
-15C to +70C

Number of Conductor
3 to 24 cores

Tensile Strength
>15 N/mm

Diameter
Varies according to core and size

Core Number
Multi-core

Weight
Depending on configuration (Standard: 140-850g/m)

Cable Type
Flat/round flexible cable

Product Type
Flexible Pendent Cable

Length
Customizable (standard lengths up to 100 meters)

Voltage
Up to 1100V

Insulation Material
PVC (Polyvinyl Chloride)

Application
Elevator, hoist, crane, festoon, pendent control station, mobile equipment

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-25C to +70C

Connector Color
Black or Yellow (as per customer requirement)

Shield Material
Optional Copper Braiding

Jacket Color
Black / Yellow / Customized

Dimension (L*W*H)
Varies as per type and core configuration

Material
Copper conductor, PVC insulated and sheathed

Color
Black, Yellow, or as specified

Size
0.75 Sq.mm to 16 Sq.mm

Bending Radius
Minimum 7.5 x cable overall diameter

Packaging Type
Coil, drum, or customized packaging

Environment Protection
Lead-free and halogen-free options available

Sheath Hardness
Shore A 78 ± 5

UV Resistance
UV stabilized for outdoor applications

Oil Resistance
Good resistance to mineral oils

Manufacturer's Service Life
>15 years under normal operating conditions

Compliance
Meets IS 694, IEC, and ROHS standards

Fire Performance
IEC 60332-1 flame retardant and low smoke emission

About PENDENT CABLE

Experience the fresh standard of elite engineering with our PENDENT CABLE, delivering exquisite durability and phenomenal performance at the lowest price. Constructed with superior stranded flexible copper conductors, these cables exhibit transcendent flexibility, flame-retardant reliability (IEC 60332-1), and UV resistance-ideal for elevator, hoist, and portable equipment. Enjoy low smoke emission, excellent oil and corrosion resistance, and steadfast mechanical strength, making it suitable for diverse industrial settings. Lead-free, halogen-free, and RoHS-compliant, this cable assures over 15 years of optimal service life. Custom lengths, colors, and packaging available.

Versatile Functions and Application Areas

PENDENT CABLES are used as flexible power and control cables for elevators, cranes, hoists, festoon systems, and pendant control stations. Their application surface includes mobile machinery and cable trolley systems, both indoor and outdoor. The cable's multi-core, stranded copper construction and exceptional bending radius provide flawless performance in dynamic environments, making it suitable for industrial automation, mobile control units, and moving machinery in factories, warehouses, and manufacturing units.

Packaging, Certifications, and Export Information

We offer PENDENT CABLES in coil, drum, or fully customizable packaging as per your quotation requirements. Certified under IS 694, IEC, and RoHS standards, our cables guarantee safety and compliance. Our major export markets include India, Southeast Asia, the Middle East, and Europe-with the shipment and delivery process streamlined for timely estimates. Whether in bulk or specific quantities, each order is managed to ensure quality handling from quotation to final export shipment.

FAQ's of PENDENT CABLE:

Q: How do PENDENT CABLES ensure safety in industrial applications?

A: PENDENT CABLES comply with IEC 60332-1, IS 694, and ROHS standards, offering flame retardancy, low smoke emission, UV stability, and oil resistance. They are also available in lead-free and halogen-free variants, ensuring safe use in various environments.

Q: What types of equipment are these cables typically used for?

A: These cables are best suited for elevator controls, hoists, cranes, festoon systems, pendant stations, and other mobile or moving equipment requiring durable and flexible power or control connections.

Q: When should I request customized lengths or packaging?

A: You should request customizations when your project requires non-standard cable lengths, unique core configurations, or specific packaging for protection or transport. We provide quotations and estimated lead times based on your tailored requirements.

Q: Where can these cables be installed outdoors?

A: Thanks to UV-stabilized and oil-resistant properties, these cables are well-suited for outdoor installations such as cable trolley and festoon systems in industrial plants, construction sites, and mobile machinery exposed to environmental challenges.

Q: What is the main benefit of using multi-core, flexible PENDENT CABLES?

A: Multi-core, stranded flexible construction ensures superior flexibility, ease of installation, and robust performance, particularly in environments where continuous movement or flexing is required, thus extending cable life and reliability.
